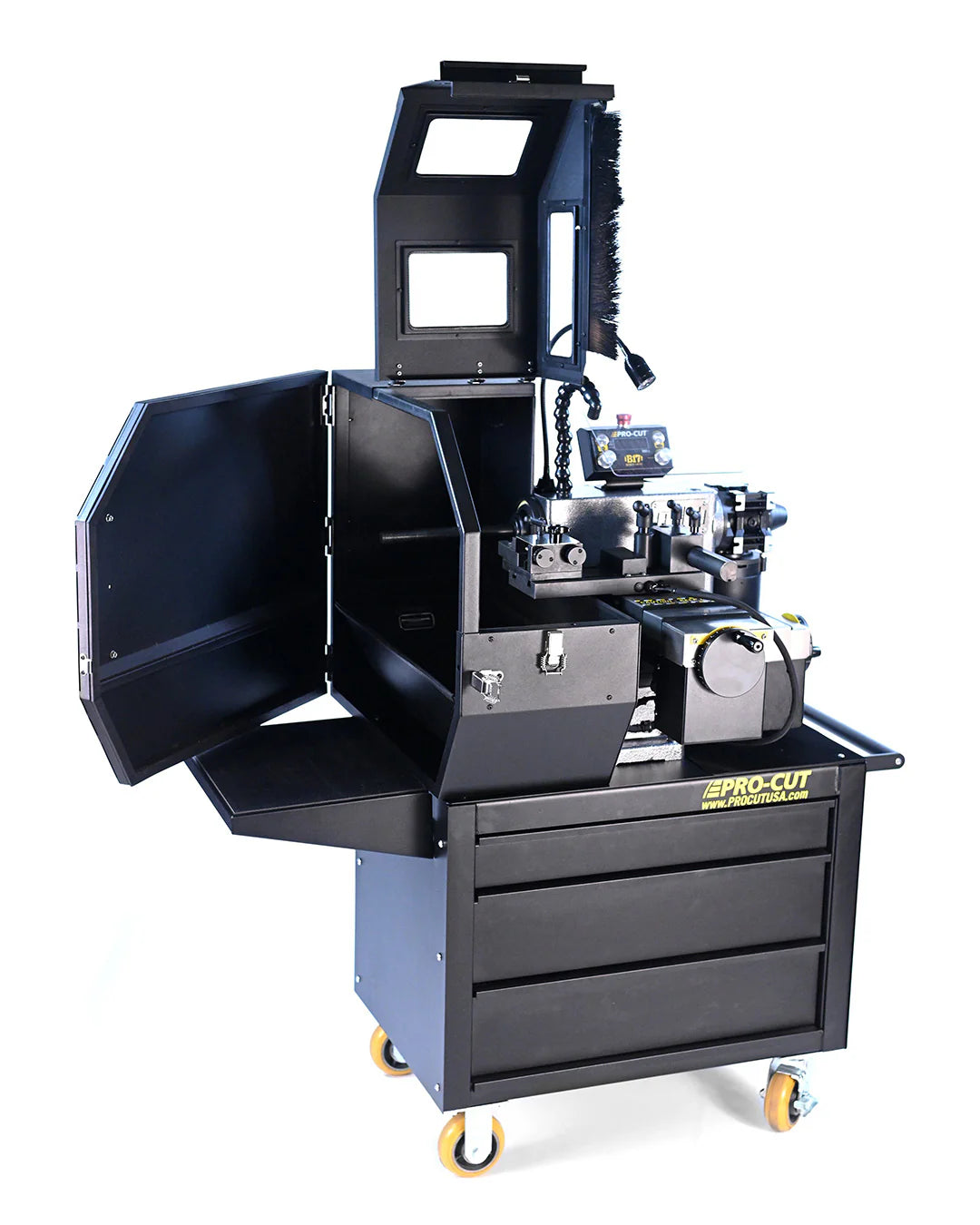

B17 with Dust Cover & Cabinet

The Pro-Cut B17 Super Bench is a state-of-the-art combination brake lathe designed for efficiency and precision in automotive brake service operations. Its innovative Quick-Pivot cutting head allows technicians to seamlessly switch between resurfacing brake discs and drums in mere seconds—no tooling changes required. This feature, combined with a quiet 750W DC motor and advanced electronics package, ensures smooth operation across a wide range of discs and drums.

The B17 is mounted on a heavy-duty mobile tool cabinet, providing convenient storage for all necessary adapters and accessories. The optional Dust Containment System (DCS) enhances the work environment by keeping the shop clean and includes tempered glass windows for easy viewing, a standard shop-vacuum port, and heavy-duty latches that open side and top doors for easy access.

Key Features:

• Quick-Pivot Cutting Head: Switch between drum and disc operations effortlessly with a single lever.

• Advanced Electronics Package: Tracks the number of rotors and drums machined, providing customizable maintenance alerts.

• Quiet DC Motor: Delivers smooth operation across various disc and drum sizes.

• Mobile Tool Cabinet: Safely stores all necessary adapters and accessories for easy movement.

• Dust Containment System: Keeps the shop clean with tempered glass windows, vacuum port, and easy-access doors.

Specifications:

• Max Rotor Thickness: 2.25" / 57mm

• Max Rotor Face Width: 3.50" / 90mm

• Max Rotor Diameter: 19.50" / 495mm

• Max Drum Diameter: 26.40" / 670mm

• Max Drum Depth: 5.90" / 150mm

• Rotor Feed Rate: 0.0016"–0.0039" [0.04–0.10mm] per revolution

• Spindle Speeds: Variable at 100, 140, 180 RPM

• Motor: 750W Peak

• Spindle Bearings: Taper Roller

• Double Taper Arbor: Yes
